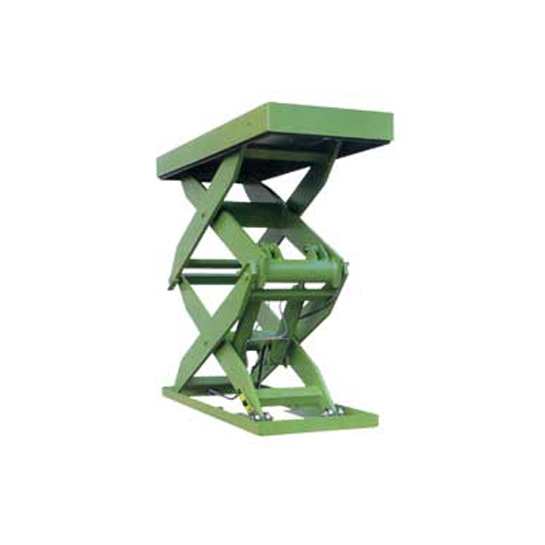

Double Vertical Scissor Lifts

Double Vertical Scissor Lift Platforms are ideal for use in a loading bay or as a lifting table between different floors because of the high stroke heights available.

The Double Vertical Scissor Lift is usually intended for use on loading bays at warehouses that have goods or materials placed on different floors or platforms. The platform has a long vertical reach and can easily offload goods or materials from floors and load them onto trucks. The platform complies with strict international standards and is easy and safe to operate. The platform is protected from hydraulic failures and electrical overloads. Double Vertical Scissor Lift Platforms from Lifts UK are available in a range of models, with various lifting capacities and speeds.

While operating the platform, it is essential to follow all instructions to ensure safety and stability.

Double Vertical

Length
(mm)
Width
(mm)
Stroke
(mm)
Closed height
(mm)
Capacity
UDL(kg)
Extend Time
(secs)
Motor
(kw)
Self weight
(kg)
EVL10-140 EVL10-140 1000 800 1150 250 1000 28 0.75 230
EVL10-188 EVL10-188 1250 800 1550 330 1000 32 0.75 350
EVL10-220 EVL10-220 1500 1000 1800 400 1000 48 0.75 480
EVL10-242 EVL10-242 1600 800 2000 420 1000 48 0.75 500
EVL10-280 EVL10-280 2000 1000 2400 420 1000 60 0.75 800
EVL10-365 EVL10-365 2500 1250 3100 500 1000 62 1.5 1150
EVL10-438 EVL10-438 3000 1500 3600 700 1000 62 3 1380
EVL2-100 EVL2-100 800 700 800 200 250 16 0.25 90
EVL2-100M EVL2-100M 800 700 800 240 250 16 0.25 90
EVL20-200 EVL20-200 1400 800 1600 410 2000 60 0.75 480
EVL20-220 EVL20-220 1500 1000 1700 420 2000 40 1.5 550
EVL20-230 EVL20-230 1600 1000 1800 440 1000 44 1.5 600
EVL20-250 EVL20-250 1800 1000 2000 500 1000 50 1.5 800
EVL20-290 EVL20-290 2000 1000 2400 520 1000 54 1.5 1000
EVL20-320 EVL20-320 2200 1250 2600 600 2000 44 3 1250
EVL20-370 EVL20-370 2500 1500 3000 700 2000 52 3 1400
EVL20-438 EVL20-438 3000 1500 3600 700 2000 62 3 1500
EVL3-92 EVL3-92 600 500 700 220 300 12 0.75 100
EVL30-320 EVL30-320 2200 1250 2600 600 3000 44 3 1450
EVL30-370 EVL30-370 2500 1500 3000 700 3000 52 3 1500
EVL5-104 EVL5-104 700 500 800 230 500 14 0.75 130
EVL5-124 EVL5-124 800 700 1000 240 500 20 0.75 140
EVL5-140 EVL5-140 1000 800 1150 250 500 14 0.75 200
EVL5-188 EVL5-188 1250 800 1550 330 500 16 0.75 270
EVL5-242 EVL5-242 1600 800 2000 420 500 24 0.75 400

Scissor Lift Gallery

Enquire

Please complete the form if you have any questions or queries about any of our scissor lifts.

If you want to speak to us regarding your scissor lift requirements, please give us a call on +44 (0115) 926 9996.
