Low closed Scissor Lifts

Lifts UK low closed scissor lift tables have a low closed height of only 80 mm, meaning that no pit is required. This increases its flexibility with regard to its field of applications and reduces installation costs. We produce a low profile lift table with the functionality level equivalent to that of a conventional lift table.

With a variety of designs and models, load capacity of between 600 kilo and 2 metric tons and a lift range from 630 mm to 970 mm, we can offer a very large selection. Low closed lift tables from Lifts UK are available in different colours, with a range of different accessories or control units - all tailored to your own needs and requirements.

Models with U or E-shaped platforms are suitable for pallet handling with a hand pallet truck. Low profile lifts with solid lift tables can be adapted with an access ramp when a hand pallet truck or other wheeled equipment is to be rolled on.

Low closed

Length
(mm)
Width
(mm)
Stroke
(mm)
Closed height
(mm)
Capacity
UDL(kg)
Extend Time
(secs)
Motor
(kw)
Self weight
(kg)

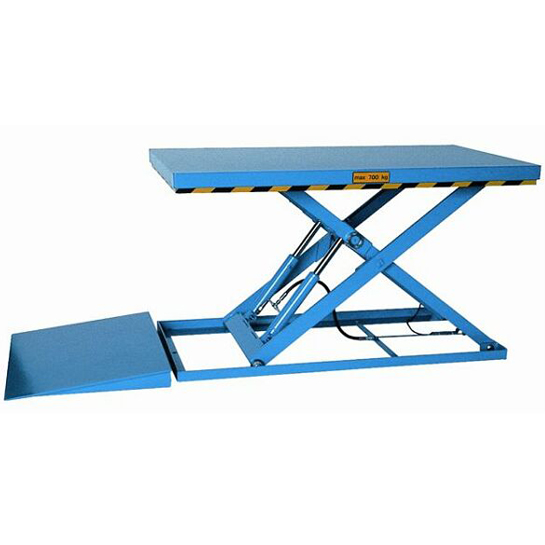

SEL10-80 SEL10-80 1400 800 700 90 1000 20 0.75 180
SEL20-80 SEL20-80 1400 1000 700 95 2000 20 1.5 250
SEL5-80 SEL5-80 1400 800 700 80 500 10 0.75 160
SUEL10-80 SUEL10-80 1400 1100 700 90 1000 20 0.75 200
SUEL15-80 SUEL15-80 1400 1100 700 112 1500 20 0.75 230

Scissor Lift Gallery

Low Closed Lift Motor Bike

Low Closed Lift Motor Bike

Enlarge
Low Closed Work Station

Low Closed Work Station

Enlarge
Heavy Duty Low Closed Lift Table

Heavy Duty Low Closed Lift Table

Enlarge
'U' shaped Low Closed Euro Pallet Lifter

'U' shaped Low Closed Euro Pallet Lifter

Enlarge
Lifting Platform with Gravity Roller Track

Lifting Platform with Gravity Roller Track

Enlarge
Manually Operated Bridging Plate

Manually Operated Bridging Plate

Enlarge
Flush with Floor Zero Height Lift Table

Flush with Floor Zero Height Lift Table

Enlarge
Zero Height Low Closed Lift Table

Zero Height Low Closed Lift Table

Enlarge
Vertical Ram Low Closed Lift Table

Vertical Ram Low Closed Lift Table

Enlarge
