Home Scissor Lifts Single

Single Scissor Lifts

Static Single Scissor Lifts are ideal for machine feeding, palletising, stacking, packing, use in a loading bay or even as a height adjustable work platform.

Single scissor is the most common type of lift tables. Companies that need to lift items/goods efficiently can easily use a single scissor lift table as they meet most needs having a lifting capacity between 500 kg and 5,000 kg and wide assortment of top plate dimensions. All the tables are stable and manufactured in an ergonomic correct design.

The use of lift tables ensures an efficient optimizing of the employees working conditions, working at a proper height, avoiding repetitive heavy lifting and therefore also many health issues. This means that the company will have less sickness absenteeism and improved productivity and economy, while employees are happy and satisfied.

All models are easy and safe to operate and maintain. They also all comply with or exceed international safety standards.

Single Scissor Lifts are useful for a range of purposes, such as lifting heavy objects onto and off of loading bays. They can also serve as height-adjustable tables onto which heavy machinery is placed for maintenance work to be carried out. Static Single Scissor Lift Tables are most commonly used for tasks involving machine feeding, palletising, packing and stacking. The platforms are available in several specifications with varying features, such as lifting capacity, platform size and object elevation time.

The Static Single Scissor Lift is safe, easy to maintain and incredibly efficient.

Single

Length
(mm)
Width
(mm)
Stroke
(mm)
Closed height
(mm)
Capacity
UDL(kg)
Extend Time
(secs)
Motor
(kw)
Self weight
(kg)
E40-330 E40-330 4000 1500 2700 550 4000 52 4 2300
E60-310 E60-310 4000 1500 2400 680 6000 50 5.5 3000
EL10-100 EL10-100 1250 800 800 190 1000 16 0.75 210
EL10-100B EL10-100B 1250 1000 800 190 1000 16 0.75 270
EL10-125 EL10-125 1600 800 1000 240 1000 24 0.75 320
EL10-125B EL10-125B 1600 1000 1000 240 1000 24 0.75 330
EL10-155 EL10-155 2000 800 1300 260 1000 30 0.75 500
EL10-195 EL10-195 2500 1000 1600 280 1000 30 1.5 700
EL10-230 EL10-230 3000 1500 1900 390 1000 38 1.5 1000
EL10-65 EL10-65 800 600 500 165 1000 14 0.75 130
EL10-80 EL10-80 1000 700 600 190 1000 14 0.75 160
EL2-50 EL2-50 600 500 350 140 200 5 0.37 100
EL20-100 EL20-100 1250 800 780 220 2000 32 0.75 270
EL20-125 EL20-125 1600 800 1000 240 2000 48 0.75 350
EL20-125B EL20-125B 1600 1000 1000 240 2000 48 0.75 370
EL20-160 EL20-160 2000 1000 1300 280 2000 30 1.5 700
EL20-195 EL20-195 2500 1250 1600 360 2000 45 1.5 900
EL20-330 EL20-330 4000 1500 2700 550 2000 56 3 1700
EL20-80 EL20-80 1000 800 600 190 2000 28 0.75 180
EL30-125 EL30-125 1600 1000 970 280 3000 48 0.75 450
EL30-165 EL30-165 2000 1250 1250 350 3000 45 1.5 900
EL30-195 EL30-195 2500 1250 1570 380 3000 55 1.5 1000
EL30-230 EL30-230 3000 1500 1850 450 3000 38 3 1500
EL30-95 EL30-95 1250 800 700 240 3000 18 1.5 280
EL40-120 EL40-120 1600 1000 900 320 4000 38 1.5 550
EL40-165 EL40-165 2000 1250 1250 390 4000 30 3 1000
EL40-230 EL40-230 3000 1500 1850 450 4000 56 3 1700
EL40-90 EL40-90 1250 800 600 300 4000 20 1.5 300

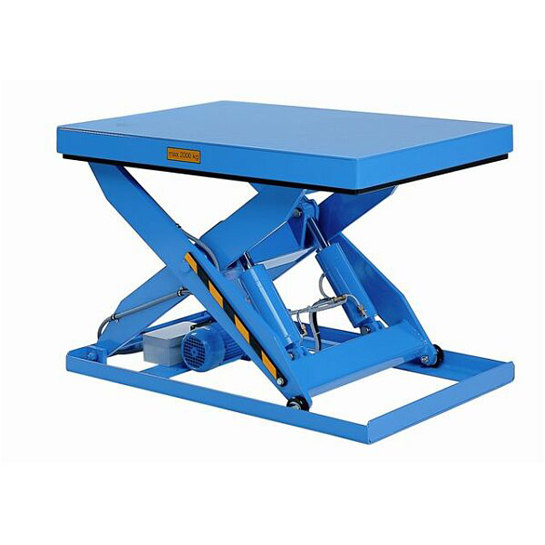

EL5-100 EL5-100 1250 800 800 190 500 10 0.75 180
EL5-100B EL5-100B 1250 1000 800 190 500 10 0.75 190
EL5-125 EL5-125 1600 800 1000 220 500 16 0.75 300
EL5-50 EL5-50 600 500 350 140 500 10 0.37 110
EL5-65 EL5-65 800 600 500 165 500 14 0.37 120
EL5-80 EL5-80 1000 700 600 190 500 7 0.75 140
EL60-115 EL60-115 1600 1000 800 360 6000 48 3 650
EL60-165 EL60-165 2000 1250 1250 400 6000 48 3 1200
EL60-195 EL60-195 2500 1250 1500 430 6000 55 3 1300

Scissor Lift Gallery

Platform Scissor Lift Table

Platform Scissor Lift Table

Enlarge
Packing Line Scissor Lift

Packing Line Scissor Lift

Enlarge
Car Lift

Car Lift

Enlarge
Access Platform

Access Platform

Enlarge
5 Tonne Work Positioner

5 Tonne Work Positioner

Enlarge
Lift and Tilt Unit

Lift and Tilt Unit

Enlarge
10 tonne Single Scissor Platform Lift

10 tonne Single Scissor Platform Lift

Enlarge
Air Bag Operated Lift Table (pneumatic)

Air Bag Operated Lift Table (pneumatic)

Enlarge
Single Scissor Mobile Roll Handler

Single Scissor Mobile Roll Handler

Enlarge
Mobility Impaired Garden Lift

Mobility Impaired Garden Lift

Enlarge
Lift Table for Double Decker Vehicle Loading

Lift Table for Double Decker Vehicle Loading

Enlarge
Kiln Cart Lift

Kiln Cart Lift

Enlarge

Enquire

Please complete the form if you have any questions or queries about any of our scissor lifts.

If you want to speak to us regarding your scissor lift requirements, please give us a call on +44 (0115) 926 9996.
