Scissor Lifts Scissor Lifts

	Length (mm)	Width (mm)	Stroke (mm)	Closed height (mm)	Capacity UDL(kg)	Extend Time (secs)	Motor (kw)	Self weight (kg)
E12-125YSS
E40-330	4000	1500	2700	550	4000	52	4	2300

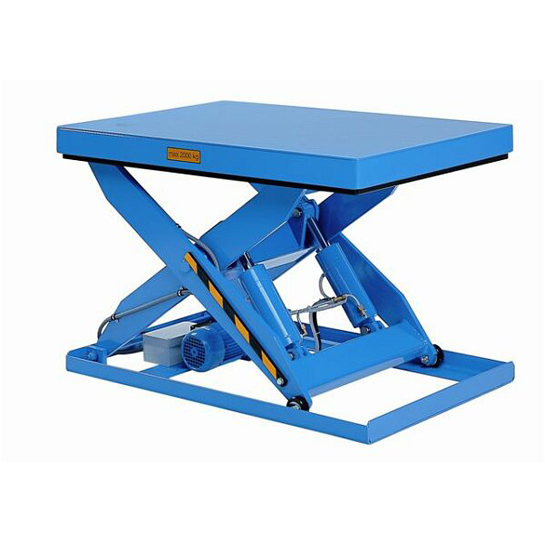

E60-310	4000	1500	2400	680	6000	50	5.5	3000

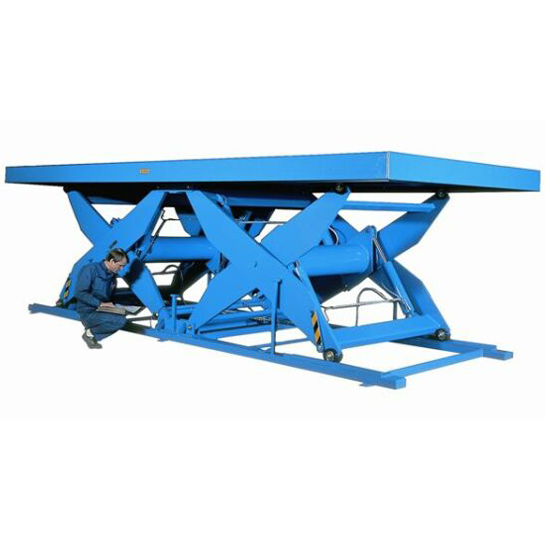

EHL10-100	2500	800	800	190	1000	20	0.75	380
EHL10-125	3200	1000	1000	220	1000	32	0.75	550
EHL10-80	2000	800	600	190	1000	14	0.75	250
EHL20-100	2500	1000	800	190	2000	32	0.75	420
EHL20-125	3200	1000	1000	240	2000	48	0.75	650
EHL20-155	4000	1000	1300	260	2000	30	1.5	1000
EHL20-195	5000	1500	1600	320	2000	30	3	1700
EHL20-80	2000	800	600	190	2000	28	0.75	300
EHL40-100	2500	1000	780	220	4000	30	1.5	580
EHL40-125	3200	1000	1000	240	4000	48	1.5	720
EHL40-160	4000	1250	1300	320	4000	30	3	1300
EHL40-195	5000	1500	1600	400	4000	45	3	2000
EHL60-125	3200	1000	970	280	6000	48	1.5	800
EHL60-165	4000	1250	1250	390	6000	45	3	1600
EHL60-195	5000	1500	1570	420	6000	55	3	2300
EL10-100	1250	800	800	190	1000	16	0.75	210
EL10-100B	1250	1000	800	190	1000	16	0.75	270
EL10-125	1600	800	1000	240	1000	24	0.75	320
EL10-125B	1600	1000	1000	240	1000	24	0.75	330
EL10-155	2000	800	1300	260	1000	30	0.75	500
EL10-195	2500	1000	1600	280	1000	30	1.5	700
EL10-230	3000	1500	1900	390	1000	38	1.5	1000
EL10-65	800	600	500	165	1000	14	0.75	130
EL10-80	1000	700	600	190	1000	14	0.75	160

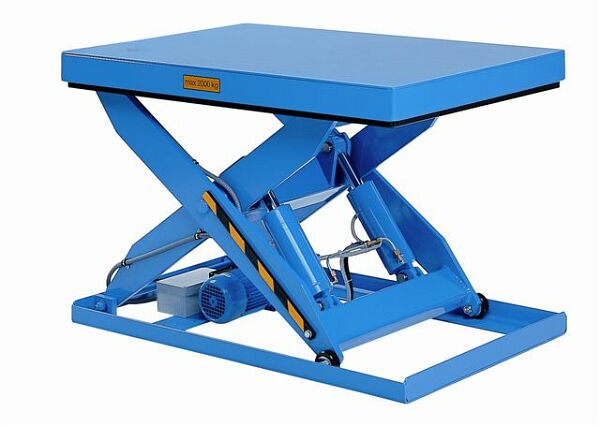

EL2-50	600	500	350	140	200	5	0.37	100
EL20-100	1250	800	780	220	2000	32	0.75	270
EL20-125	1600	800	1000	240	2000	48	0.75	350
EL20-125B	1600	1000	1000	240	2000	48	0.75	370
EL20-160	2000	1000	1300	280	2000	30	1.5	700
EL20-195	2500	1250	1600	360	2000	45	1.5	900
EL20-330	4000	1500	2700	550	2000	56	3	1700
EL20-80	1000	800	600	190	2000	28	0.75	180
EL30-125	1600	1000	970	280	3000	48	0.75	450
EL30-165	2000	1250	1250	350	3000	45	1.5	900
EL30-195	2500	1250	1570	380	3000	55	1.5	1000
EL30-230	3000	1500	1850	450	3000	38	3	1500
EL30-95	1250	800	700	240	3000	18	1.5	280
